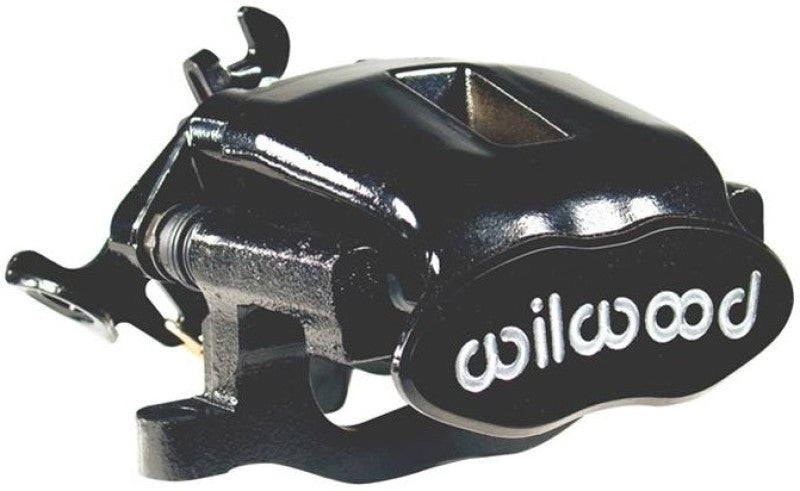

Wilwood Combination Parking Brake Caliper 120-10113-BK - Right Hand, 41mm Piston, 0.81 inch Rotor, Black

Wilwood 120-10113-BK is a right hand Combination Parking Brake (CPB) caliper in black, using a 41mm bore piston and sized for a 0.81 inch thick rotor.

Specifications

• Combination Parking Brake hydra-mechanical caliper
• 41mm piston bore
• Fits 0.81 inch rotor thickness
• Right hand side
• Black finish
• Sold individually, part number 120-10113-BK

How it works

The CPB caliper uses hydraulic pressure for stopping and a separate mechanical locking mechanism for the parking brake, so one caliper covers both jobs. That makes it a practical answer for drum brake conversions and rear disc upgrades on axles that will not accept an internal shoe parking brake system.

Fitment

This is a component caliper, not a vehicle-specific kit. Match it to the correctly proportionate rotor diameter for balanced bias, particularly when it is paired with a front brake upgrade. Confirm your rotor thickness, diameter, and mounting before ordering. Wilwood supplies the caliper on its own, so plan the rotor, bracket, and cable side of the conversion before you order.
