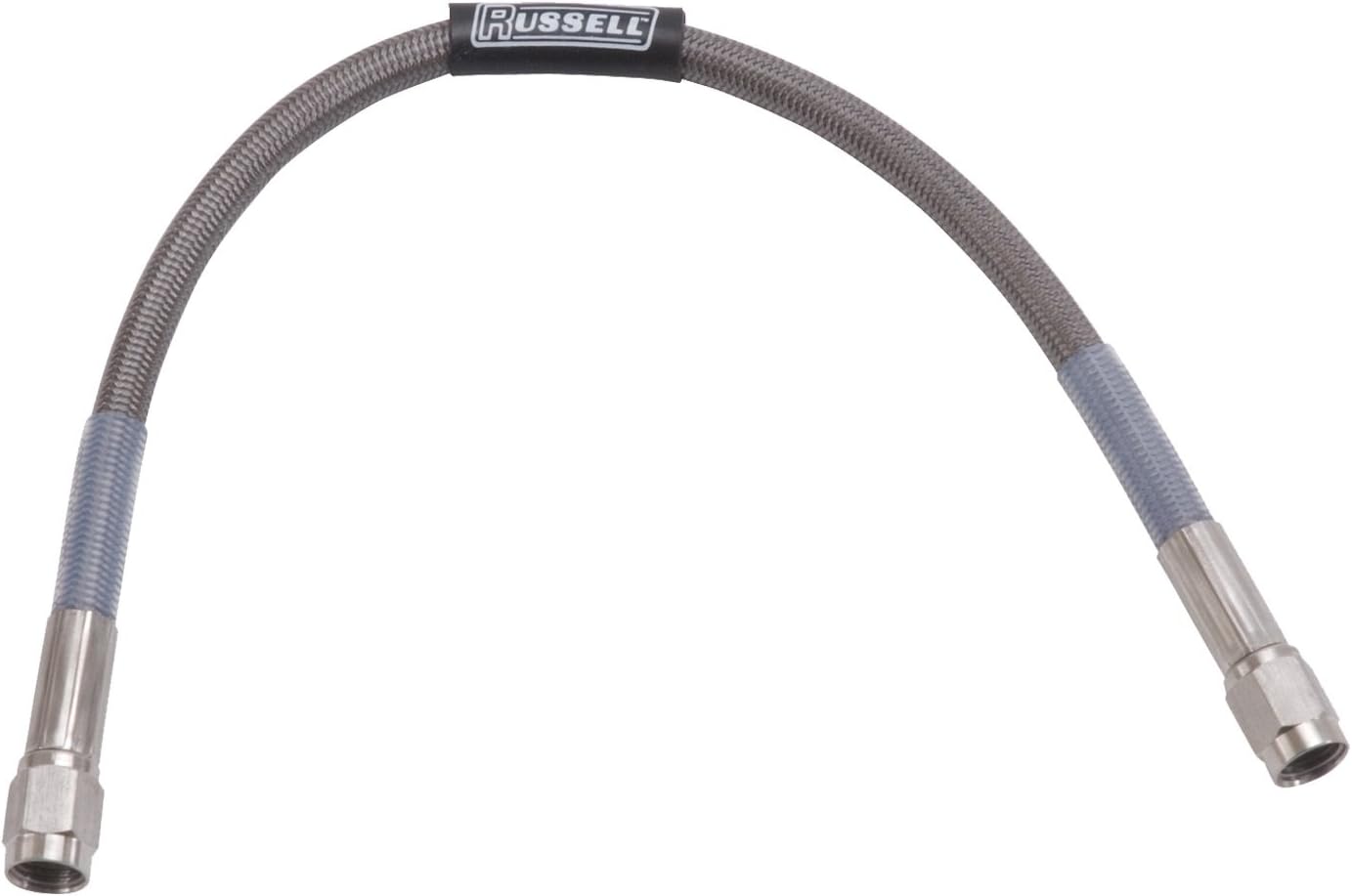

Edelbrock Russell 656020 Competition Stainless Braided Brake Hose 12 inch -3AN to -3AN - Off-Road Race Use

Edelbrock Russell 656020 Competition stainless steel braided brake hose with -3AN straight fittings on both ends, 12 inches long. Off-road / race use only — the assembly is non-DOT compliant so it is not legal for street registration in most states. Ideal for race cars, sand rails, off-road-only builds, and dirt track vehicles.

Specifications

• Length: 12 inches
• Fitting size: -3AN male to -3AN male (straight to straight)
• Construction: Stainless steel outer braid, PTFE inner line
• Hose ends: Zinc plated
• Compliance: Non-DOT — off-road / competition use only

Typical Uses

• Race cars — road course, oval, dirt track
• Off-road / desert builds — Trophy Trucks, sand rails, prerunners
• Dirt track and stock car applications
• Custom brake system builds where -3AN fittings match the calipers or master cylinder

Non-DOT means this hose is not certified for on-road use. Verify your local regulations and vehicle registration status before installing on a street vehicle. Full brake parts collection for DOT-compliant OE-replacement brake lines.

Why Russell Brake Hose

• Firmer pedal feel — stainless outer sleeve prevents the rubber-line balloon effect under hard braking
• Higher burst pressure than OE rubber — appropriate for race duty
• Edelbrock quality — Russell is Edelbrock's brake / plumbing brand with decades of race-industry credibility
• Zinc plated ends — corrosion protection on the fittings that see moisture

Install Notes

• Requires matching -3AN female fittings on your caliper adapter and master cylinder line
• Use fresh copper crush washers on every -3AN joint — do not re-use old washers
• Torque -3AN fittings to 8-10 ft-lb; do not overtighten
• Full brake system flush and bleed after install — start at the wheel farthest from the master cylinder
• Verify no rubbing against tires, control arms, or exhaust — hose rubbing failure is catastrophic
