Warped Brake Rotor Symptoms — How to Tell and What to Do

By Core Brake Parts Tech Team — Circleville, OH warehouse

The two most reliable warped brake rotor symptoms are a steering wheel shake at highway speed under braking, and a brake pedal that pulses back at your foot as you slow down. If both are present, the front rotors are almost certainly the cause. This guide walks through every diagnostic sign, the real physics of what "warped" actually means (spoiler: rotors rarely warp — they develop uneven pad transfer or thickness variation), and exactly what to replace to fix it.

Direct experience note: we see this pattern most often on 2014-2018 Silverado 1500 K2XX and 2015-2020 F-150 P552 trucks that tow. Both have front rotor spec that runs marginal on heat capacity, and both come to us for replacement kits within a year of an owner starting to tow.

The Seven Symptoms of a Warped Brake Rotor

1. Steering wheel shake between 50-70 mph under braking — the classic. Comes from uneven rotor thickness at the front pads. Never gets better on its own.
2. Brake pedal pulsation — you feel the pedal push back into your foot as you slow. Comes from rear rotors if the pedal pulses but the steering wheel is quiet.
3. Whole-vehicle shudder at moderate braking speed (30-50 mph) — usually both axles at once, or a badly worn front pad hitting a heavily grooved rotor.
4. Squealing or grinding that changes pitch with wheel speed — the pad is riding on inconsistent rotor surface.

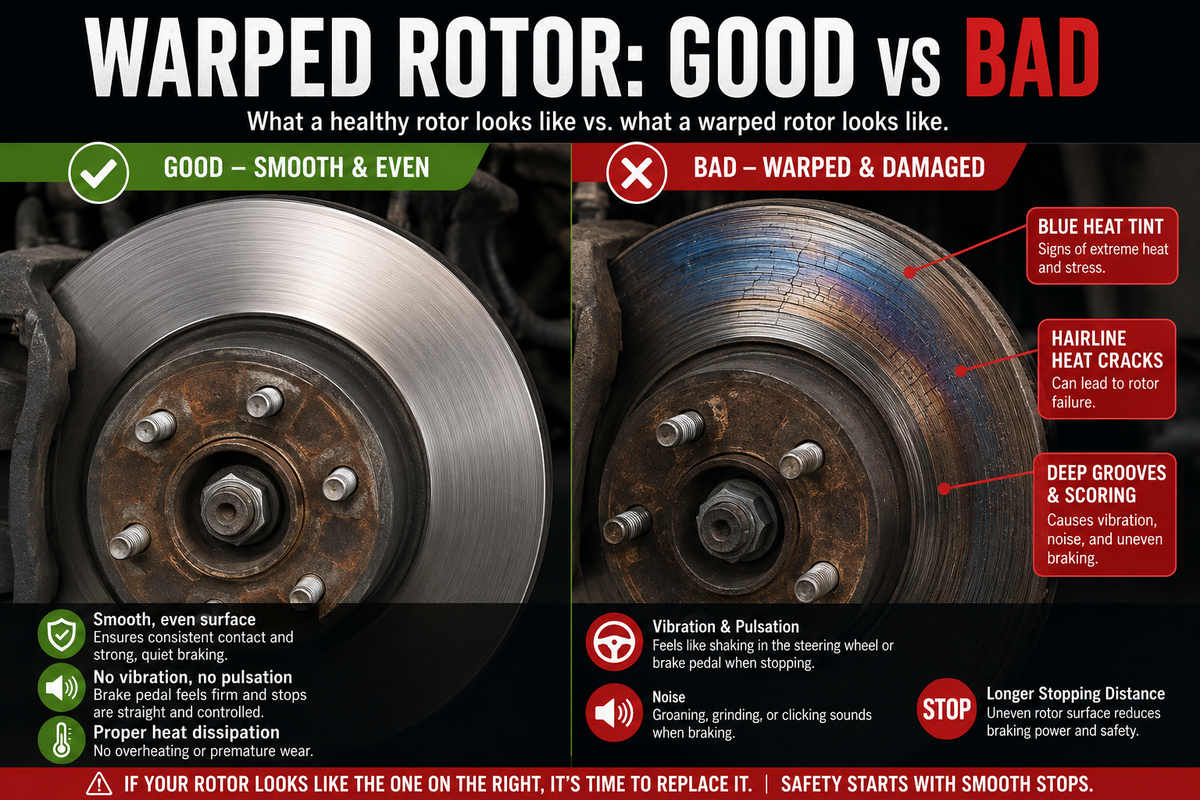

5. Rotor face visible grooves, blue tint, or heat cracks — inspect through the wheel spokes. Blue tint = severe overheating. Heat cracks (small radial lines) = replace immediately.
6. Longer stopping distances — if you notice you need more pedal to stop what used to be a routine stop, the friction contact area has dropped.
7. Brake fluid smell after highway driving — extreme rotor heat has boiled brake fluid. Fluid change plus rotor replacement.

Why "Warped" Is the Wrong Word

Real rotor warping — the disc physically bending out of true — is rare. What most people call "warped rotors" is one of two things:

• Disc thickness variation (DTV) — the rotor thickness varies by 0.02 mm or more around its circumference. Every time the thicker spot hits the pad, it pushes the caliper piston back a fraction. That push transmits up the brake lines to the pedal — pulsation.
• Uneven pad transfer — brake pads leave a microscopic film of friction material on the rotor face during normal use. If a hot pad is left stationary against the rotor (e.g., you park after aggressive braking) it deposits a thicker patch. That patch causes uneven friction — pulsation.

Brembo confirms this in their brake tech literature: "true warping requires temperatures a passenger vehicle brake system rarely reaches." Most complaints trace to DTV or pad-transfer variation. — Brembo

How to Diagnose Front vs Rear

The Fix — When to Turn Rotors vs Replace

Two options when DTV is confirmed:

1. Turn / resurface the rotors — a machine shop skims material off both faces until the thickness is uniform. Only works if the rotor is still above minimum thickness (stamped on the rotor hat, e.g. "MIN TH 24.4 mm"). Many modern rotors are so thin from factory that there is no material to turn — replacement is the only path.
2. Replace with new rotors and pads together — this is what we recommend 95% of the time. New pads with old rotors will re-transfer unevenly on the existing wear pattern within a few hundred miles. Rotors and pads bed as a matched pair.

For the K2XX Silverado 1500 (2014-2018), our matched replacement kit is the Wagner OEX front pad and rotor kit — OE-spec rotors paired with a premium ceramic pad. For the F-150 P552 (2015-2020) owner who tows, the Power Stop Z23 drilled and slotted front kit handles heat better than the OE compound.

Preventing It — Bedding and Cooling Discipline

Two habits prevent 90% of DTV / pad-transfer complaints:

• Bed new pads properly — 8-10 medium stops from 40 mph to 10 mph without coming to a full stop, letting the rotors air-cool between stops. Then 2-3 harder stops from 60 mph to 15 mph. Then drive normally for 10 minutes without holding the pedal. This lays down an even pad transfer layer.
• Don't hold the pedal against a hot rotor — after aggressive braking (a long mountain descent, an emergency stop, towing) roll forward a few feet in gear before parking. That prevents a hot pad from depositing a thick transfer patch.

Cost — What to Expect

Our brake parts collection covers most passenger cars and light trucks. Full Power Stop catalog for tow / off-road duty.

Key Takeaways

• Steering wheel shake at highway speed under braking = front rotors, almost always.
• Brake pedal pulsation without steering shake = rear rotors.
• Most "warping" is actually disc thickness variation or uneven pad transfer, not true warping.
• Replace rotors and pads together — new pads on old rotors re-transfer unevenly.
• Bed new pads properly with 8-10 moderate stops from 40 to 10 mph.
• Free shipping on orders over $75; same-day shipping on in-stock orders before 2 PM ET.

References

1. Brembo — How to Know When Your Brake Rotors Need Changing. brembo.com
2. SAE International — Brake Rotor Disc Thickness Variation Analysis. SAE 2018-01-1892
3. Car and Driver — What Really Causes Warped Brake Rotors. caranddriver.com
4. Tire Rack — Brake Rotor Tech Reference. tirerack.com
