2011-2017 Nissan Juke Rotor Replacement: Resurface or Replace

By Core Brake Parts Tech Team — Circleville, OH warehouse

On a 2011-2017 Nissan Juke, a rotor can be resurfaced only if it is free of cracks and hard spots and will still be above the minimum thickness cast into it after the cut. The Juke's rear rotor is a thin solid disc with very little metal to spare, so in practice most worn Juke rotors, especially rears, are replaced rather than machined. Measure first, then decide.

How the Juke's Rotors Are Built

Every 2011-2017 Juke uses four-wheel disc brakes: a ventilated rotor up front, where most of the stopping work happens, and a solid rotor at the rear. Knowing the dimensions tells you how much room there is for machining. Brembo's replacement catalogue for the F15 Juke lists the figures below. Use them as a guide, and always confirm against the minimum thickness stamped or cast on your own rotor, because the front size depends on the engine and trim.

That last column is the whole story. A front rotor has about 2 mm of total wear life, split across two faces. A rear rotor has about 1 mm. Every pass on a brake lathe removes some of that, and the pads take more on every stop afterward. A rotor cut close to its limit runs hotter, warps sooner and wears through its last margin quickly.

Symptoms That Send Juke Owners to the Rotors

• Pulsing pedal or steering-wheel shimmy when braking from speed. This is usually thickness variation, meaning the rotor faces are no longer parallel. Tire Review notes that as little as .001 inch of variation can be felt in the pedal.
• Grinding or a deep scraping sound. The pad has worn to its backing plate and is cutting the rotor. Rotors in this condition are almost never worth machining.
• Visible grooves or a raised lip at the outer edge. Light scoring is cosmetic; deep grooves you can catch with a fingernail eat thickness fast.
• Blue or dark spots on the face. These are heat spots. Hard spots go below the surface, so a lathe cannot remove them.
• Heavy rust on the rear rotors. Juke rear rotors do less work than the fronts and can rust on the faces, especially on cars that sit or live where roads are salted.

Resurface or Replace: The Decision Checklist

Pull the wheel and measure the rotor with a micrometer at several points around the face, not just one. Then work through this list.

On a Juke rear rotor with only about 1 mm of total wear allowance, the "plenty of thickness left" case is rare once the car has gone through a set of pads. Front rotors on a low-mileage car with light scoring are the realistic candidates for machining.

Check Runout and the Hub Before Blaming the Rotor

A new rotor bolted to a rusty hub will pulse just like a worn one. Tire Review's guidance is to keep lateral runout under .002 inch, measured with a dial indicator against the rotor face. Before you condemn or cut anything:

1. Clean the hub face and the inside of the rotor hat down to bare metal with a wire brush. Rust scale between them is a leading cause of runout.
2. Mount the rotor, hold it with the lug nuts, and measure runout.
3. If runout is high, try re-indexing the rotor to a different position on the hub before reaching for the lathe.
4. When the wheel goes back on, finish the lug nuts with a torque wrench in a star pattern, to the value in your owner's manual. Uneven lug torque from an impact gun can distort the rotor and bring the pulsation right back.

If You Replace: What to Buy and What to Do Together

Replace rotors in pairs on the same axle so both sides brake evenly, and always fit new pads with new rotors; old pads carry the wear pattern of the old surface. Do not machine new rotors before installing them, since it removes thickness and can worsen the finish. Choose a replacement that matches the original cooling vane design up front, since a thinner rotor with fewer vanes runs hotter.

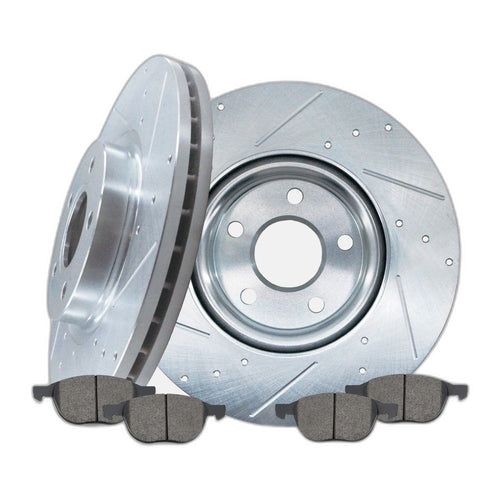

• For a complete job, our 2011-2017 Nissan Juke front and rear brake kit includes rotors and pads for both axles.

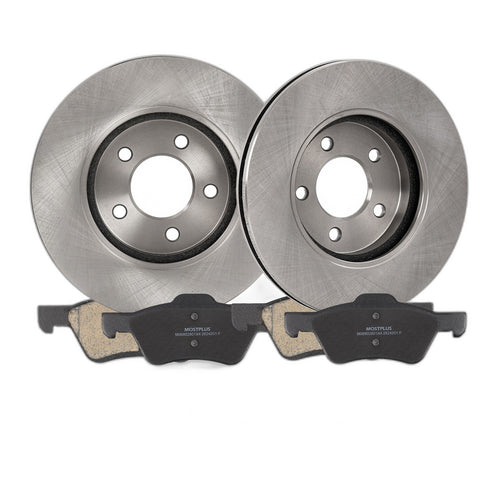

• Shopping one axle at a time? Browse replacement brake rotors and matching ceramic brake pads, which run quiet and low-dust on a daily driver like the Juke.
• Replace worn clips and abutment shims with a brake hardware kit, and clean and lubricate the caliper slide pins.

Bed in the new pads and rotors with a series of moderate stops from speed, without coming to a full stop and holding the pedal while the brakes are hot. That lays down an even pad film and helps prevent the vibration that sent you here in the first place.

How Hard Is the Job on a Juke?

A rotor swap on the Juke is a moderate DIY job with basic tools: a jack and stands, sockets, a C-clamp or caliper piston tool, a torque wrench and a micrometer. The caliper bracket comes off to remove the rotor, and the bracket bolts should go back to the factory torque spec. Rotors that have been on for years can rust to the hub; penetrating oil and a few firm blows to the hat, never the friction face, usually free them. Check the factory service manual for how the rear caliper piston retracts and how the parking brake is serviced before forcing anything.

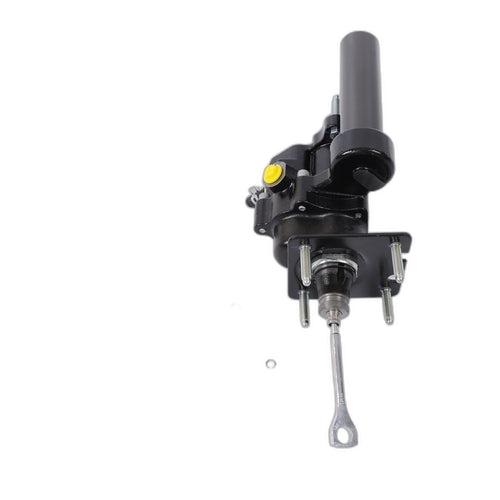

One safety note for owners of the 2015-2017 Juke NISMO RS: NHTSA campaign 18V-086 covered a brake master cylinder that could leak fluid into the brake booster, reducing braking performance. A soft or long pedal on that model is not a rotor problem, so check the recall status with a Nissan dealer.

Frequently Asked Questions

Can I resurface the rear rotors on my Juke?

Sometimes, but rarely. The rear disc is thin, with about 1 mm between new and minimum thickness in Brembo's catalogue. If a measurement shows a cut would take it near or below the cast minimum, replace it.

Where is the minimum thickness on my rotor?

It is usually cast or stamped into the rotor, often on the hat or the outer edge, marked "MIN TH" or similar. Use that number, not a general rule of thumb.

Do I need to replace rotors every time I replace pads?

No. If the rotors are above minimum, flat, and free of cracks, hard spots and deep grooves, new pads can go on after a clean cut or even a light scuff. If the rotors fail any of those checks, replace them with the pads.

Why do my new rotors already pulsate?

The most common causes are rust on the hub face, uneven lug nut torque, or poor bed-in. Clean the hub, check runout with a dial indicator and torque the wheels properly.

Should I replace front and rear rotors at the same time?

Not necessarily. Fronts usually wear faster. Always replace both rotors on the same axle together, and replace the other axle when its rotors fail the same checks.

Sources

1. Brembo catalogue - Nissan Juke F15 1.6 DIG-T - 296 x 26 mm vented front disc, 24 mm minimum; 292 x 9 mm solid rear, 8 mm minimum
2. Brembo catalogue - Nissan Juke F15 1.6 - 280 x 24 mm front disc, 22 mm minimum; same rear disc
3. Tire Review - Brake Rotors: When to Resurface and When to Replace - minimum thickness rule, hard spots, .001 in thickness variation, .002 in runout, hub cleaning, no machining new rotors
4. NHTSA recall acknowledgment 18V-086 - 2015-2017 Juke NISMO RS master cylinder leak into booster
5. Nissan campaign bulletin R1801 - master cylinder replacement remedy for the NISMO RS
