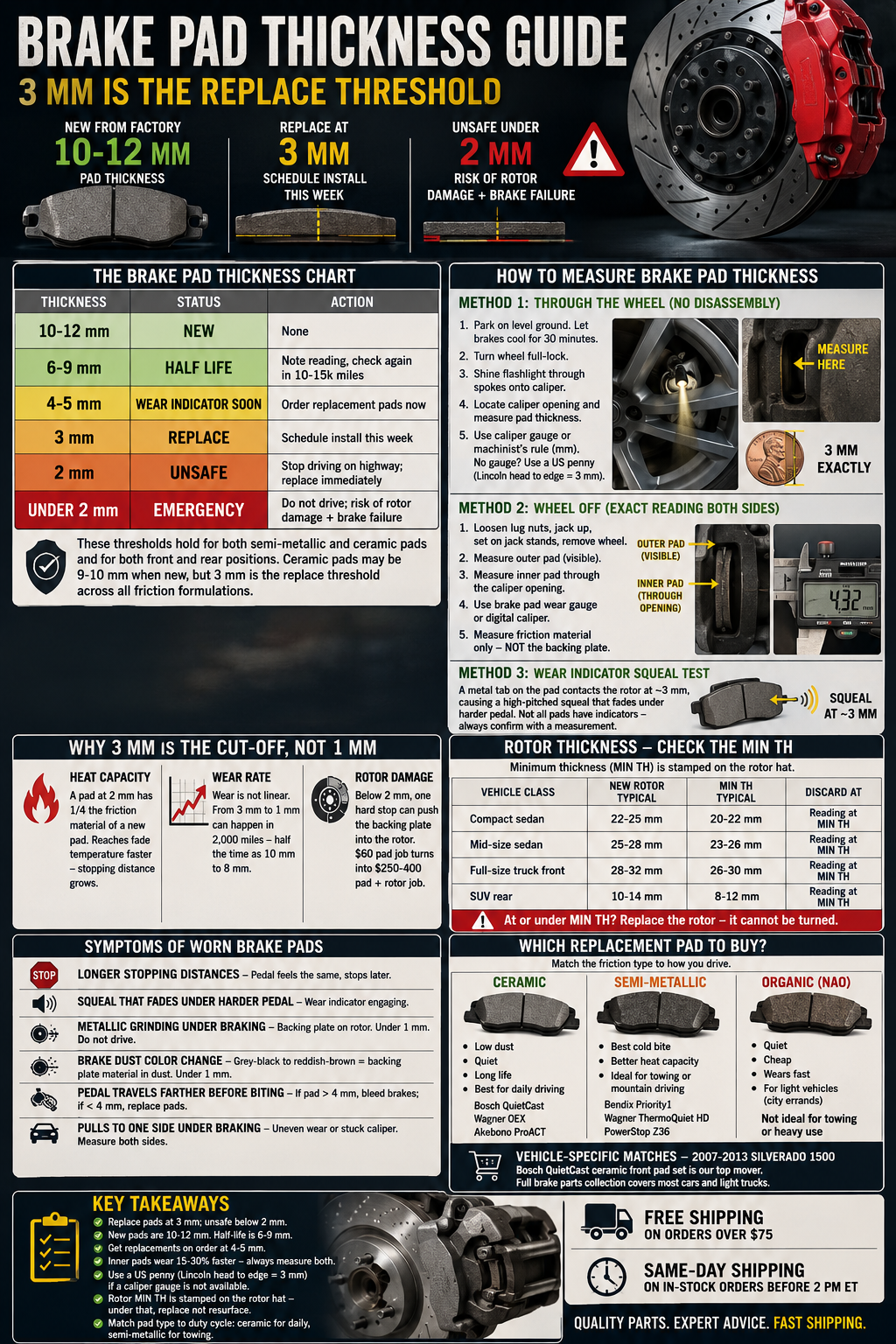

Brake Pad Thickness - When to Replace and How to Measure

By Core Brake Parts Tech Team — Circleville, OH warehouse

New brake pads leave the factory 10 to 12 millimeters thick. Replace them when the friction material reaches 3 millimeters. Anything under 2 millimeters is unsafe — the pad backing plate is about to contact the rotor and destroy it. Under-3 mm pads take longer to stop, fade faster under repeated use, and are one panic stop away from a bare-metal-on-rotor situation that will need a full front brake job instead of just pads.

Direct experience: on a 2016 Silverado 1500 that came in for pad replacement at 68,000 miles, the outer front pads measured 2.7 mm and the inner pads 1.9 mm. Inner pads always wear faster because the piston pushes harder against them. This uneven wear pattern is normal and is one reason to measure both sides of the caliper, not just the visible outer edge.

The Brake Pad Thickness Chart

These thresholds hold for both semi-metallic and ceramic pads and for both front and rear positions. Ceramic pads run thinner-when-new on some vehicles (9-10 mm), but the 3 mm replace threshold is a constant across friction formulations because it is a physical clearance number, not a wear-percentage number.

How to Measure Brake Pad Thickness

Method 1: Through the wheel spokes, no disassembly

1. Park the vehicle on level ground and let brakes cool for 30 minutes.
2. Turn the wheel full-lock in one direction so the front caliper faces you.
3. Shine a flashlight through the wheel spokes onto the caliper.
4. Locate the caliper opening — usually a horizontal slot on the top or side of the caliper body. You will see the edge of the pad friction material against the rotor.
5. Measure with a caliper gauge or a machinist's rule marked in millimeters. If neither is available, use a US penny — the distance from the edge to Lincoln's head is 3 mm exactly.

This method reads the outer pad. To read the inner pad accurately you need to pull the wheel — see method 2. On most vehicles the inner pad wears 15-30 percent faster than the outer, so if the outer reads 4 mm the inner is likely already at replacement threshold.

Method 2: Wheel off, exact reading both sides

1. Loosen lug nuts, jack the vehicle, set on jack stands, remove wheel.
2. Look at the caliper — the visible outer pad is easy. For the inner, look through the caliper opening from the top.
3. Use a brake-pad wear gauge (about $8) or a digital caliper.
4. Measure the friction material only — do NOT include the metal backing plate. The backing plate is 4-6 mm on top of whatever friction material remains.

Method 3: Wear indicator squeal test

Most OE-spec and premium aftermarket pads have a small metal tab riveted to the backing plate. When the pad wears to about 3 mm, the tab starts contacting the rotor at every stop, producing a high-pitched squeal that goes away when you press the brake pedal harder. This is the pad telling you it wants to be replaced.

Warning: not all pads have wear indicators. Cheap generic pads often skip them, so absence of squeal is not proof of adequate pad thickness. Always confirm with a physical measurement.

Why 3 mm Is the Cut-Off, Not 1 mm

Three reasons the replacement threshold is 3 mm rather than "when they run out":

• Heat capacity drops with mass. A pad at 2 mm has one-quarter the friction material of a new pad. Under repeated hard braking (mountain descent, towing, city stop-and-go on a summer day) that thin pad will reach fade temperature much faster and stopping distance grows sharply.
• Wear rate is not linear. Pads wear roughly linearly from 10 mm down to about 4 mm, then wear accelerates as the friction material gets thinner and hotter. A pad going from 3 mm to 1 mm can happen in 2,000 miles, half the time as 10 mm to 8 mm.
• Rotor damage risk. Below 2 mm, one hard stop can push the piston far enough that the backing plate rakes the rotor. That turns a $60 pad job into a $250-400 pad + rotor job on the front axle alone.

Rotor Thickness — The Companion Measurement

Every rotor has a minimum thickness stamped or cast into the hub, usually shown as "MIN TH" followed by a millimeter number. Below that number the rotor cannot absorb enough heat and cracks under load.

If a rotor is at or under MIN TH, it cannot be turned (resurfaced) — it must be replaced. This is a growing issue on modern vehicles where rotors ship close to their minimum from the factory to save weight.

Symptoms of Worn Brake Pads You Can Diagnose Without Tools

• Longer stopping distances — the pedal feels the same but the vehicle stops later. Friction area has dropped.
• Metallic grinding under braking — the pad backing plate is contacting the rotor. Under 1 mm. Do not drive.
• Squeal that fades under harder pedal — wear indicator is engaging. Around 3 mm.
• Brake dust color change — going from grey-black to reddish-brown means metallic backing plate material is entering the dust. Under 1 mm.
• Pedal travels farther before biting — either low pad or air in lines. If pad measurement is above 4 mm, bleed the brakes; if under 4 mm, replace pads.
• Vehicle pulls to one side under braking — one side is worn much thinner than the other, or has a stuck caliper piston. Measure both sides.

Which Replacement Pad to Buy

Match the friction type to how you drive:

• Ceramic — low dust, quiet, long life, best for daily driving. Bosch QuietCast, Wagner OEX, Akebono ProACT. Full brake pad catalog.
• Semi-metallic — best cold bite, better heat capacity, ideal for towing or mountain driving. Bendix Priority1, Wagner ThermoQuiet HD, PowerStop Z36.
• Organic (NAO) — quiet and cheap but wears fast. Only appropriate on very light vehicles used for city errands.

Vehicle-specific matches — for a 2007-2013 Silverado 1500, the Bosch QuietCast ceramic front pad set is our top mover. Full brake parts collection covers most passenger cars and light trucks.

Frequently Asked Questions

What's the short answer on brake pad thickness?

Brake pads start with about 10-12 mm of friction material and should be replaced near 3 mm. Below that, braking drops off and rotors risk damage. Measure only the lining, not the steel backing plate, using a caliper or tread depth gauge, and check all four corners.

How much does brake pad thickness cost?

It depends on your vehicle and how much you replace. For example, economy organic pads runs about $25-$45 per axle in parts for a DIY job, or Basic daily commuting at a shop with labor included. The full cost breakdown is in the table above.

What should I check first?

Key things to check: New brake pads start with roughly 10-12 mm of friction material on the backing plate; Most technicians replace pads at about 3 mm, where braking performance begins falling off.

Can I do this job myself?

Many DIYers can with basic tools. The first steps are: Loosen the lug nuts, lift the vehicle safely, and remove the wheel for a clear view; Locate the brake caliper and look at the pad pressed against the shiny rotor; Measure the friction material thickness with a caliper or a tire tread depth gauge. The complete step-by-step is above.

Key Takeaways

• Replace pads at 3 mm; unsafe below 2 mm.
• New pads are 10-12 mm. Half-life is 6-9 mm. Get replacements on order at 4-5 mm.
• Inner pads wear 15-30 percent faster than outer — always measure both.
• Use a US penny (Lincoln head to edge = 3 mm) if a caliper gauge is not available.
• Rotor MIN TH is stamped on the rotor hat — under that, replace not resurface.
• Match pad type to duty cycle: ceramic for daily, semi-metallic for towing.
