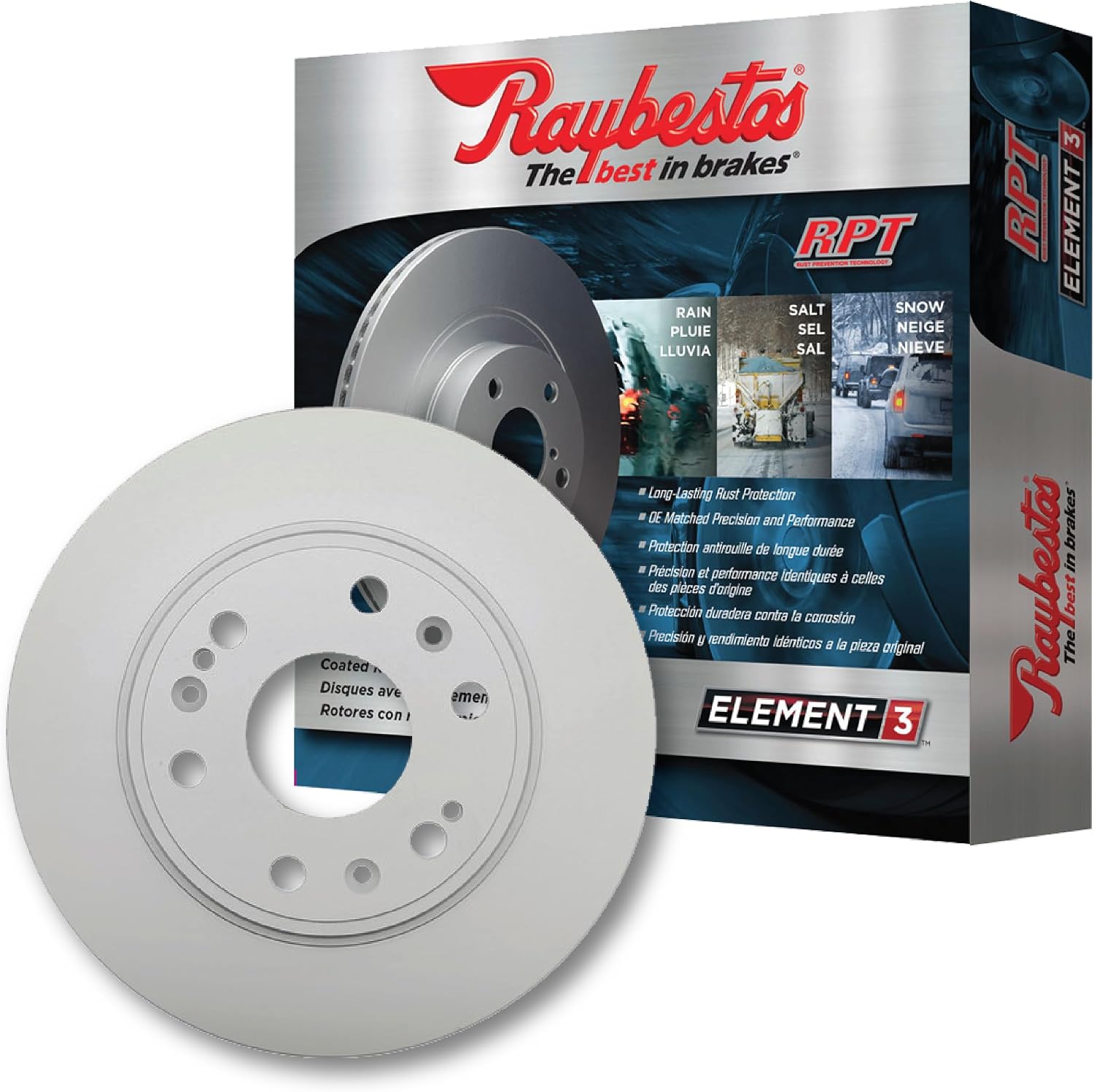

2018-2020 F-150 Rear Brake Rotor Single - Raybestos Element3 682263FZN

Raybestos Element3 rear brake rotor for the 2018-2020 Ford F-150, 2018-2021 Ford Expedition, and 2018-2021 Lincoln Navigator. This is a single rotor — order two to complete a rear axle replacement. Grey Fusion 4.0 corrosion coating means the vanes, hub, and edges stay rust-free through winter salt exposure.

Specifications

• Position: Rear (fits either driver or passenger side)
• Part number: Raybestos 682263FZN
• Line: Element3 (OE-matched precision, premium coating)
• Coating: Grey Fusion 4.0 — protects vanes and hub for corrosion resistance
• RPT Rust Prevention Technology for long-lasting outer face rust prevention

Fitment

• Ford F-150: 2018, 2019, 2020 (rear)
• Ford Expedition: 2018, 2019, 2020, 2021 (rear)
• Lincoln Navigator: 2018, 2019, 2020, 2021 (rear)

Order two rotors to complete the rear axle — always replace rotors in pairs to keep braking balanced. Full brake parts collection for matching pads, hardware, and fluid.

Why Element3

• Cooling vanes stay clear — most non-coated rotors let corrosion clog the vanes within 2 winters, dropping heat dissipation by 20-30 percent
• OE-matched dimensions — no thickness variation on installation, no pedal pulsation from day one
• Grey Fusion 4.0 coating — endures road salt, brine, and industrial fallout longer than uncoated OE

Install Notes

• Replace rotors and pads together for best bedding — old pads on new rotors transfer material unevenly
• Torque caliper bracket bolts to 100-125 ft-lb (Ford service spec)
• Verify rotor MIN TH stamp before assuming reuse is possible on removed rotors
• Bed new pads: 8-10 medium stops from 40 to 10 mph, then 2-3 harder stops from 60 to 15 mph

Warranty and Shipping

• Raybestos manufacturer warranty
• Free shipping on orders over $75
• Same-day shipping on in-stock orders placed before 2 PM Eastern
• 30-day return policy on unopened parts
