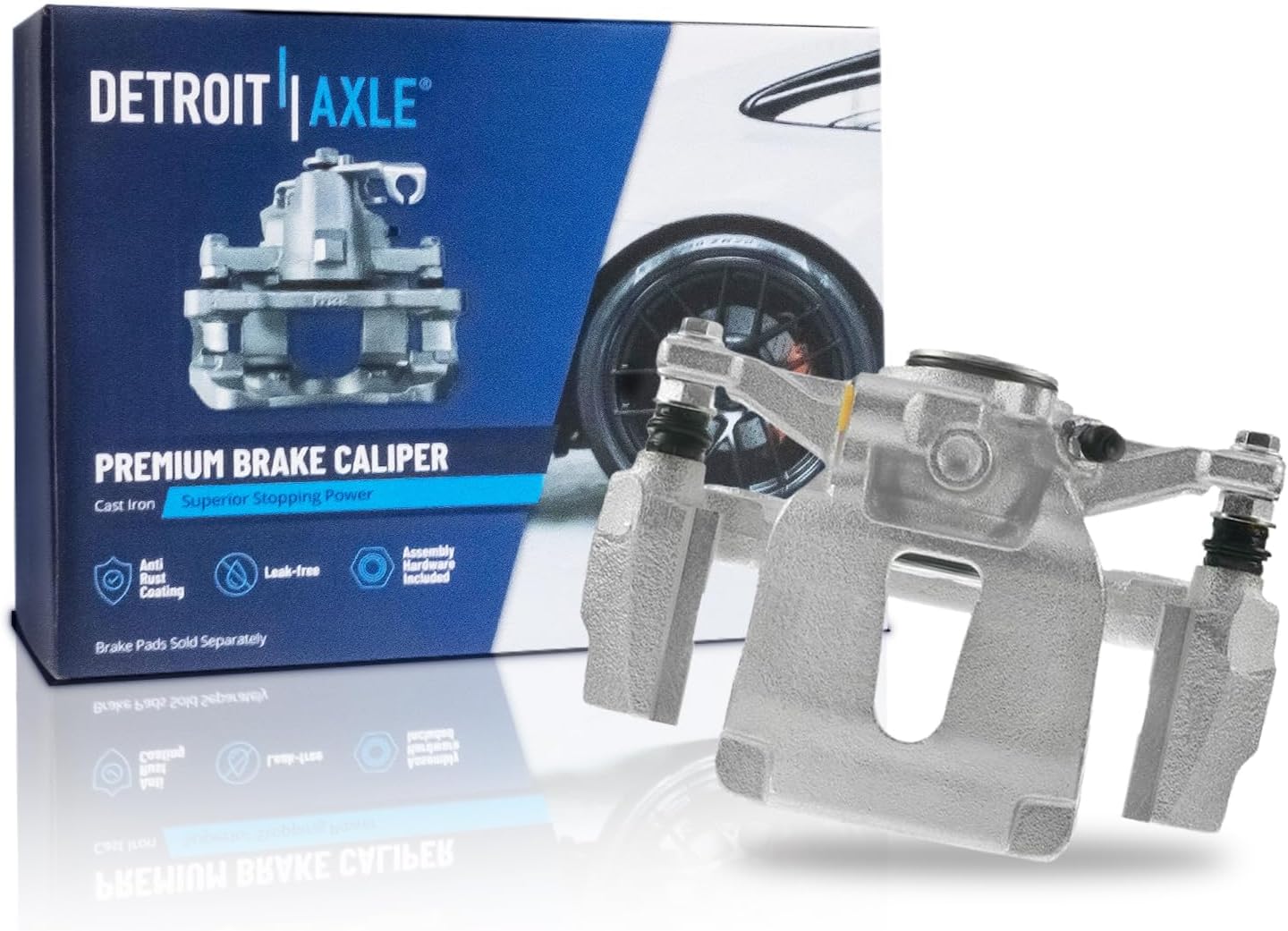

2015-2017 Ford F-150 Rear Right Passenger Side Brake Caliper - Electronic Parking Brake - Detroit Axle

Rear right (passenger side) brake caliper with bracket for the 2015, 2016, and 2017 Ford F-150 equipped with the electronic parking brake system. Companion piece to our left/driver side EPB caliper - order both for a full pair replacement. Does NOT include the EPB motor - you reuse the motor from your existing caliper.

Specifications

• Position: Rear right (passenger side) - order matching left caliper for a full pair
• Piston size: 2.12 inch (53.92 mm)
• Piston material: Steel
• Piston count: 1 (single-piston floating design)
• Bracket: Included
• EPB motor: NOT included - reuse from your existing caliper
• OEM interchange: 18-B5500, FL3Z-2552-A

Fitment - Confirm EPB Type

• Ford F-150 2015, 2016, 2017 with ELECTRONIC parking brake (button on center console)

Critical: F-150 rear caliper design split by parking brake type starting 2015. Your F-150 has EPB if the parking brake is activated by a small button on the console next to the shifter. If it has a foot pedal or hand-pull lever, this is the WRONG part - order the manual parking brake caliper instead. Full brake parts collection for the MPB caliper variant.

EPB Motor Transfer Procedure

• Disconnect the EPB motor electrical harness FIRST before removing anything else
• Remove the three motor mounting bolts, transfer motor to new caliper body
• Retract the piston fully using Ford IDS or an aftermarket EPB service tool - never turn or press the piston by hand
• Torque motor bolts to Ford service spec
• Reconnect harness; verify seal on twist-lock connector
• Run EPB relearn / calibration cycle with a scan tool that supports Ford EPB service mode before driving

Install Notes

• Torque caliper bracket bolts to 100-125 ft-lb per Ford service spec
• Silicone caliper grease on slider pins, not chassis grease
• Bleed the passenger rear last after replacing components on both sides
• Always replace both rear rotors and pads at the same time as caliper replacement
• Do not drive until EPB relearn confirms healthy status
